Turn it on
- 1Push the 운전 button in (to 켜짐). The green 운전 lamp lights.
Rinnai RBMC-10 in English

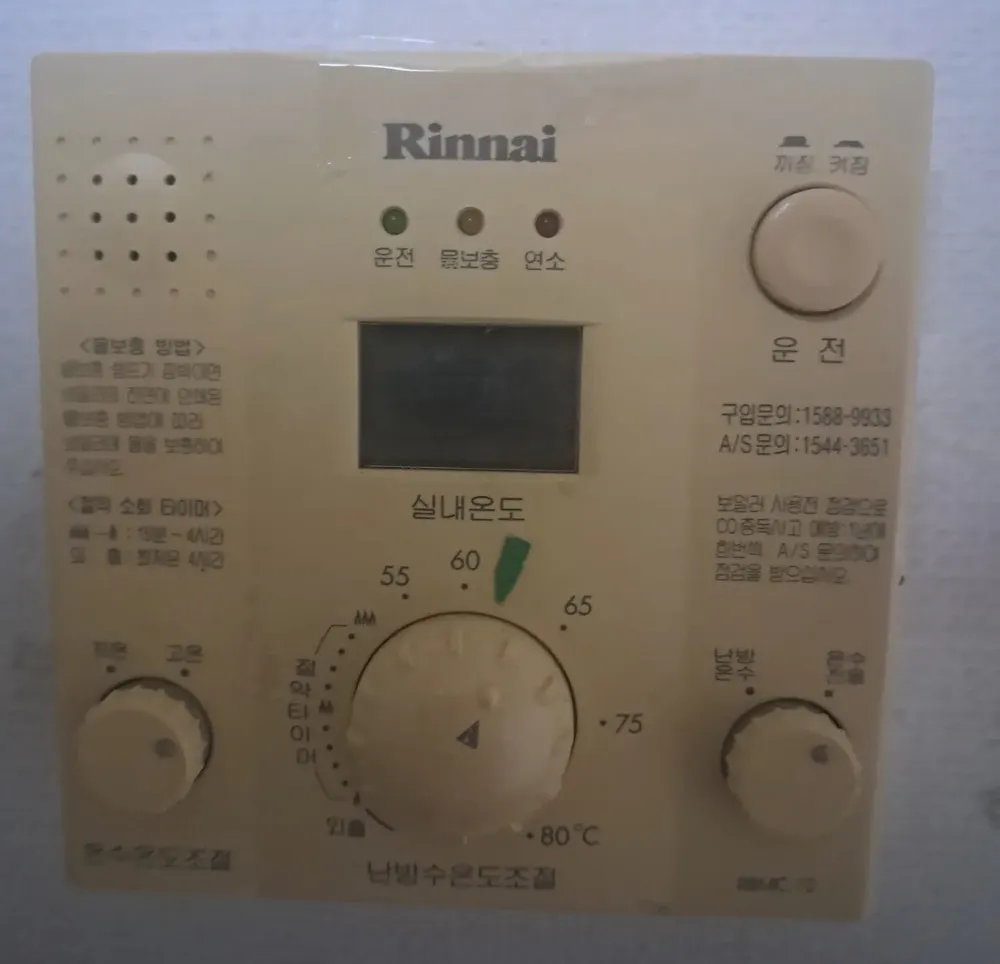

A very old cream Rinnai panel with three knobs: hot-water 저온/고온 on the left, a big heating-water dial (40–80°C) in the middle, and a winter/summer selector on the right, plus a push-in 운전 power button.
We could not find this exact model's manual, so these steps come from its closest sibling. If your panel behaves differently, send us a photo.
What does each button do?
- 1Running lamp · 운전unjeonGreen = the boiler is switched on.
- 2Refill lamp · 물보충mul bochungBlinking = the boiler is low on water. Refill using the instructions printed on the boiler's front (or call the landlord/A/S).
- 3Burner lamp · 연소yeonsoRed = burner firing.
- 4Power button · 운전 (꺼짐 / 켜짐)unjeonPush-in button: pushed in = 켜짐 (on), out = 꺼짐 (off).
- 5Room temperature · 실내온도sillae ondoShows the room temperature. It is a reading only — this panel does not hold a room temperature.
- 6Refill note · 물보충 방법mul bochung bangbeopPrinted: if the refill lamp blinks, add water following the method printed on the boiler front.
- 7Heating-water dial · 난방수온도조절nanbangsu ondo jojeolSets how hot the floor-heating water is, 40–80°C. Higher = warmer floors, more gas.
- 8Hot water knob · 온수온도조절 (저온 / 고온)onsu ondo jojeol저온 = lukewarm (mild season). 고온 = hotter (winter).
- 9Season guide · <겨울> / <여름>gyeoul / yeoreumPrinted guide: winter = heating + hot water together; summer = hot water only.
- 10Mode selector · 난방온수 / 온수전용nanbang-onsu / onsu jeonyongLeft (난방온수) = heating and hot water. Right (온수전용) = hot water only, no heating.
What setting should I use?
Selector on 난방온수, heating dial at 60, hot water knob in the middle. Summer: 온수전용.
How do I…?
Use floor (ondol) mode
- 1Turn the right selector to 난방온수.
- 2Turn the middle dial to 60 in winter (55 in mild weather, 65–70 only if very cold).
- 3Use the 실내온도 reading to judge: if the room passes 23–24°C, turn the dial down.
Leave for a few days
- 1Photo 46 version: turn the middle dial to 외출 (lowest temperature, runs every 4 hours).
- 2Photo 06 version (no 외출 mark): leave 난방온수 on with the dial at 40, and keep 운전 on so frost protection works.
Run on a timer
- 1Photo 46 version only: turn the middle dial into the 절약타이머 zone (between 55 and 외출).
- 2The printed scale: near 55 (///) = rests 15 minutes between burns; toward 외출 (/) = rests up to 4 hours.
- 3Most people get better results ignoring this and setting the dial to 60.
Hot water only (summer)
- 1Turn the right selector to 온수전용.
Change the hot-water temperature
- 1Left knob: toward 저온 = lukewarm, toward 고온 = hotter. Middle is a good start.
Turn it off
- 1Push the 운전 button out (to 꺼짐). In winter, use the lowest setting instead of off.
What do the words on the screen mean?
| 운전 (초록) | Running | Boiler is on. |
|---|---|---|
| 물보충 (깜박임) | Refill | Low water — refill per boiler front panel. |
| 연소 (빨강) | Burning | Burner is firing. |
| 실내온도 숫자 | Room temperature | Current room temperature reading. |
What trips people up on this model?
- There is NO room-temperature mode. The dial sets water heat; the 실내온도 screen just reads the room.
- Selector on 온수전용 = no heating at all, even with the dial high.
- Photo 46 dial: everything left of 55 is the 절약타이머 (saving timer) zone, and the far end is 외출. Turning the dial down there doesn't mean 'a bit cooler' — it switches to long off-periods.
- Blinking 물보충 lamp = low water; the boiler may stop until refilled.
It shows an error. Now what?
This old panel shows no error codes. If 운전 is on and nothing burns: check the gas valve is open and the 물보충 lamp isn't blinking, then call Rinnai A/S 1544-3651.
Service line (Korean): 1544-3651
